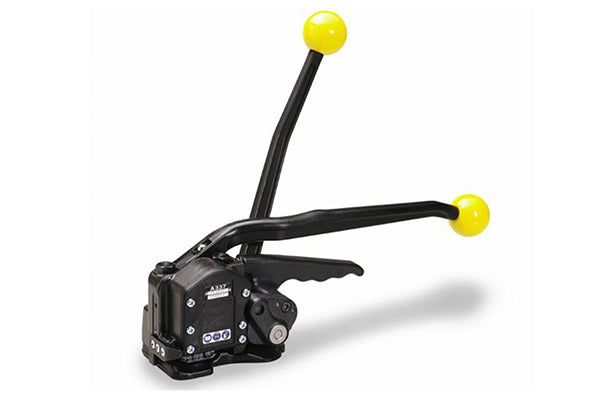

A337 Manual Steel Strapping Tools

Characteristics

Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions:
widths = 9.5 – 20.0 mm / 3/8 – ¾”
thicknesses = 0.38 – 0.63 mm / .015 – .025”
Weight: 4.45 kg / 9.8 lbs Normal-version
Sealless Joint: Fromm MicroLock™
Average seal strength: approx. 80 %
Suspension (Optional): Suspension for vertical and horizontal applications; has to be ordered separately Handle for horizontal applications; has to be ordered separately

Advantages

The MicroLock™ sealless system guarantees a maximum of security of the sealless
steel strapping joint against unlocking.
The tool can handle regular duty and high tensile steel strapping.
The tool can handle steel strapping up to a thickness of 0.64 mm / .025”.
Thanks to the special tensioning system (free wheeling) no loss of strap tension.
The sealing mechanism is completely closed.
The adjustment of the cutting and sealing depth is simple.
The feed wheel and the die and cutter support are easy to change.
