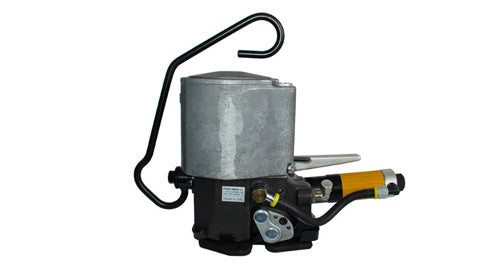

A385 Pneumatic Sealless Combination Steel Tool

Characteristics

Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions:
widths = 9.5 – 20.0 mm / 3/8 – ¾”
thicknesses = 0.38 – 0.63 mm / .015 – .025”
Weight: 10.5 kg / 23.2 lbs with suspension
Average seal strength: up to 80
Type of seal: FROMM Microlock
Type of Joint: Single notch joint
Suspensions : Suspension bracket for standard and vertical applications is supplied with the tool suspension bracket for horizontal and
vertical applications; have to be ordered separately, see accessories.

Advantages

Ideal pneumatic tool to strap flat packages – high reliability eliminates down-time
Pneumatic operation offers considerable time savings
Air Motor for tensioning allows high and constant strap tension
The sealless joint reduces the overall strapping costs by approx. 10% through the elimination of the seal

With the innovative profile of the sealless punch and due, the tool produces the unique Microlock sealless joint preventing the seal from getting loose in case of shrinkage.
