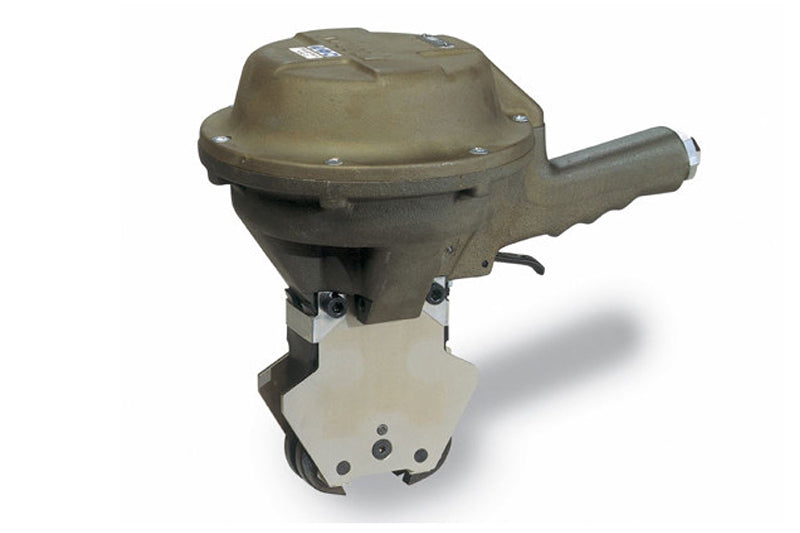

A461 Pneumatic Sealer

Characteristics

Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions:
widths = 19.0 – 32.0 mm / 3/4 – 1-1/4″
thicknesses = 0.63 – 1.00 mm / .025 – .040”
Weight: 4.2 kg / 9.3 lbs
Average seal strength: up to 75%
Type of seal: Overlap seals, see chart
Type of Joint: Double notch upcut joint
Suspensions (Optional): Suspension bracket for standard and vertical applications is supplied with the tool suspension bracket for horizontal and
vertical applications; have to be ordered separately, see accessories.

Advantages

Very suitable for strapping of bars, bundles, pipes, coils and packages having a small surface.
If used for stationary operation the tool may be suspended on a spring loaded
balancer using a suspension bracket (see suspensions)
