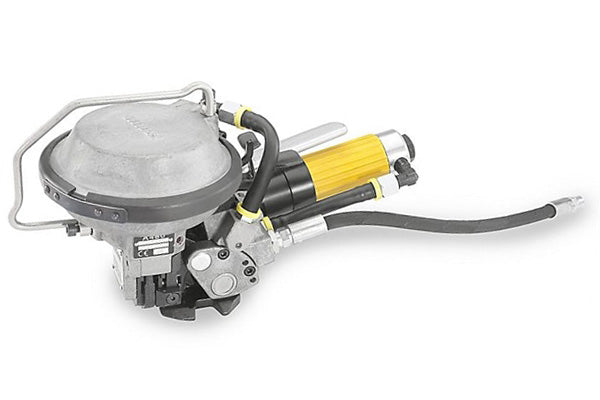

A480 Pneumatic Steel Strapping Tool

Characteristics

Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions:
widths = 10.0 – 19.0 mm / 3/8 – ¾”
thicknesses = 0.38 – 0.63 mm / .015 – .025”
Weight: 4.6 kg / 10.1 lbs with suspension
Tool sizes: L330 x W122 x H130 mm / 13.0” x 4.8” x 5.1”
Average seal strength: up to 75%
Type of seal: Overlap seals, see chart
Type of Joint: Single notch joint
Suspensions (Optional): Suspension bracket for standard and vertical applications is supplied with the tool suspension bracket for horizontal and
vertical applications; have to be ordered separately, see accessories.

Advantages

Very suitable for strapping of bars, bundles, pipes, coils and packages having a small surface.
If used for stationary operation the tool may be suspended on a spring loaded
balancer using a suspension bracket (see suspensions)
