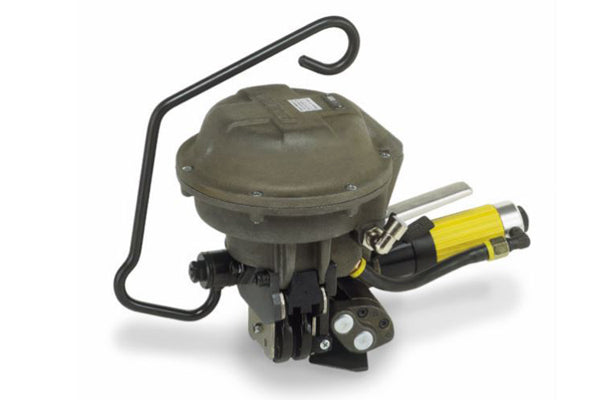

A482 Pneumatic Steel Strapping Tool

Characteristics

Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions:
Widths = 19.0 mm /  ¾”
Thicknesses = 0.63 – 0.90 mm / .025 – .035”
Weight: 7.0 kg / 15.4 lbs with suspension
Average seal strength: up to 75%
Type of seal: Overlap seals, see chart
Type of Joint: Double notch upcut joint
Suspensions (Optional): Universal suspension bracket for standard and vertical applications is supplied with the tool

Advantages

Ideal high performance strapping tool for metal products i.e. coils, loads of bars, pipes bundles, rods and curved or irregularly shaped packages.

The perfect double notch upcut joint is accomplished in a single operation and the low weight of the tool allows a mobile operation without any suspension system.
