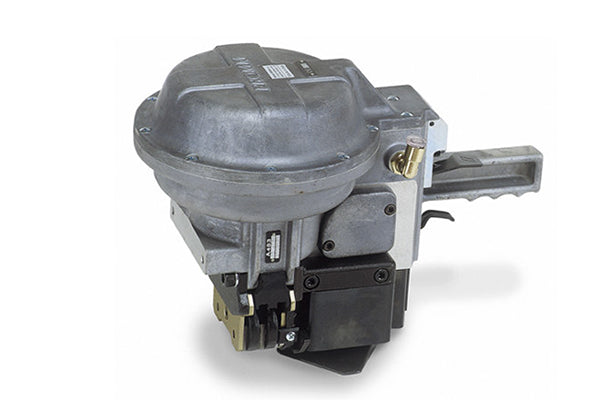

A483 Pneumatic Steel Strapping Tool

Characteristics

Strapping qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions:
Widths = 25.0 and 32.0 mm / 1 and 1 ¼”
Thicknesses = 0.80 – 1.00 mm / .031-.040”
Weight:
18.0 kg / 39.7 lbs without suspension
19.5 kg / 43.0 lbs with suspension
Average seal strength: up to 75%
Type of seal: Overlap seals, see chart
Strap Tension: The tool is available for two different stages for strap tension, see charts
Strap Tension:
One button version = automatic
Two button version = semi automatic
Suspensions (Optional): Universal suspension bracket is available separately for purchase, see below for details

Advantages

• The most rugged pusher type strapping tool of its kind for continuous and shift operations demanding a high working reliability
• High performance machine with an outstanding record of performance in the steel and non ferrous industries
• The perfect double notch upcut seal joint is accomplished in one operation
• Inserting of the strap into the tools is easy since the feed wheel is lifted pneumatically and no operator effort is required
• Four different suspension brackets are available thus allowing the tool to be mounted in any possible suspension position
