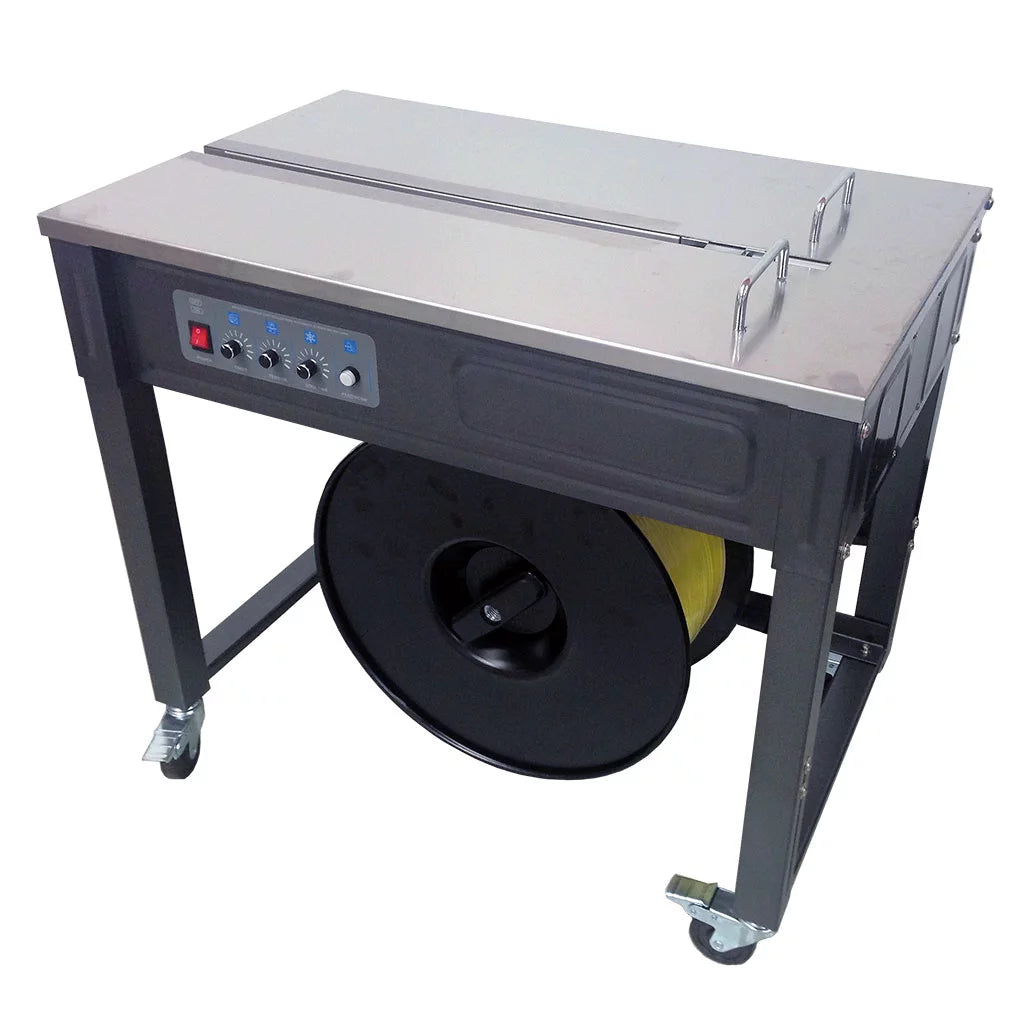

Eagle SP11 Semi-Automatic Strapping Machine
Eagle SP11 Semi-Automatic Strapping Machine
Couldn't load pickup availability
EAGLE SP11

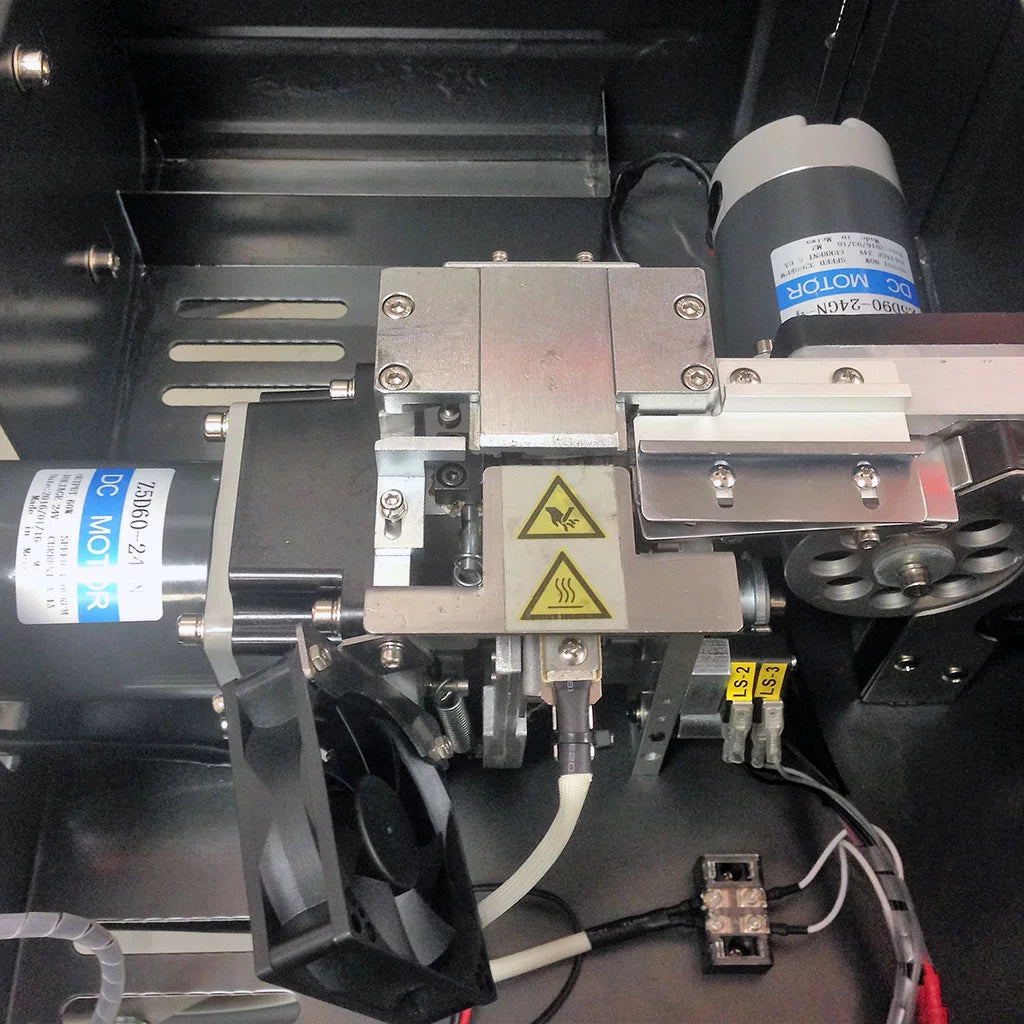

- Dual direct-drive 24v motors

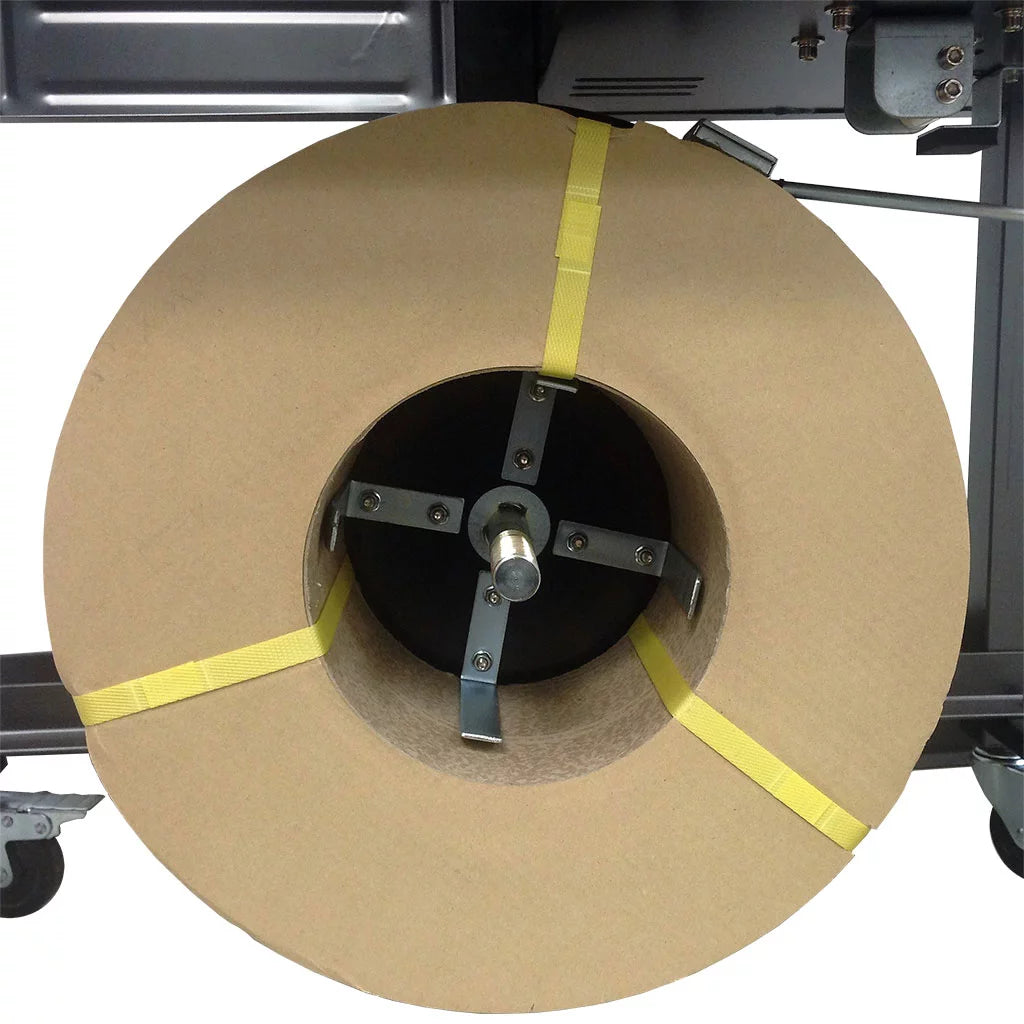

- Supports 6-15mm Strap
- “Silent” operation

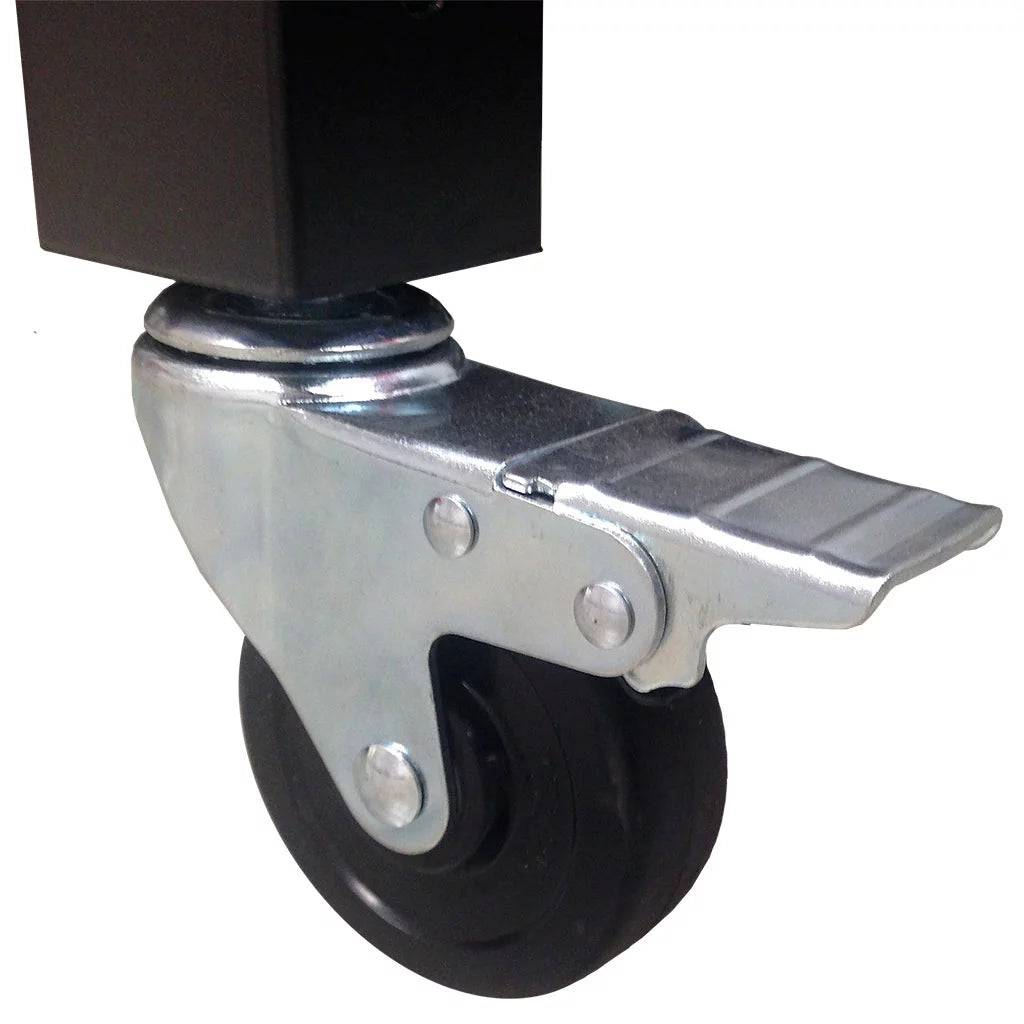

- Quad locking casters

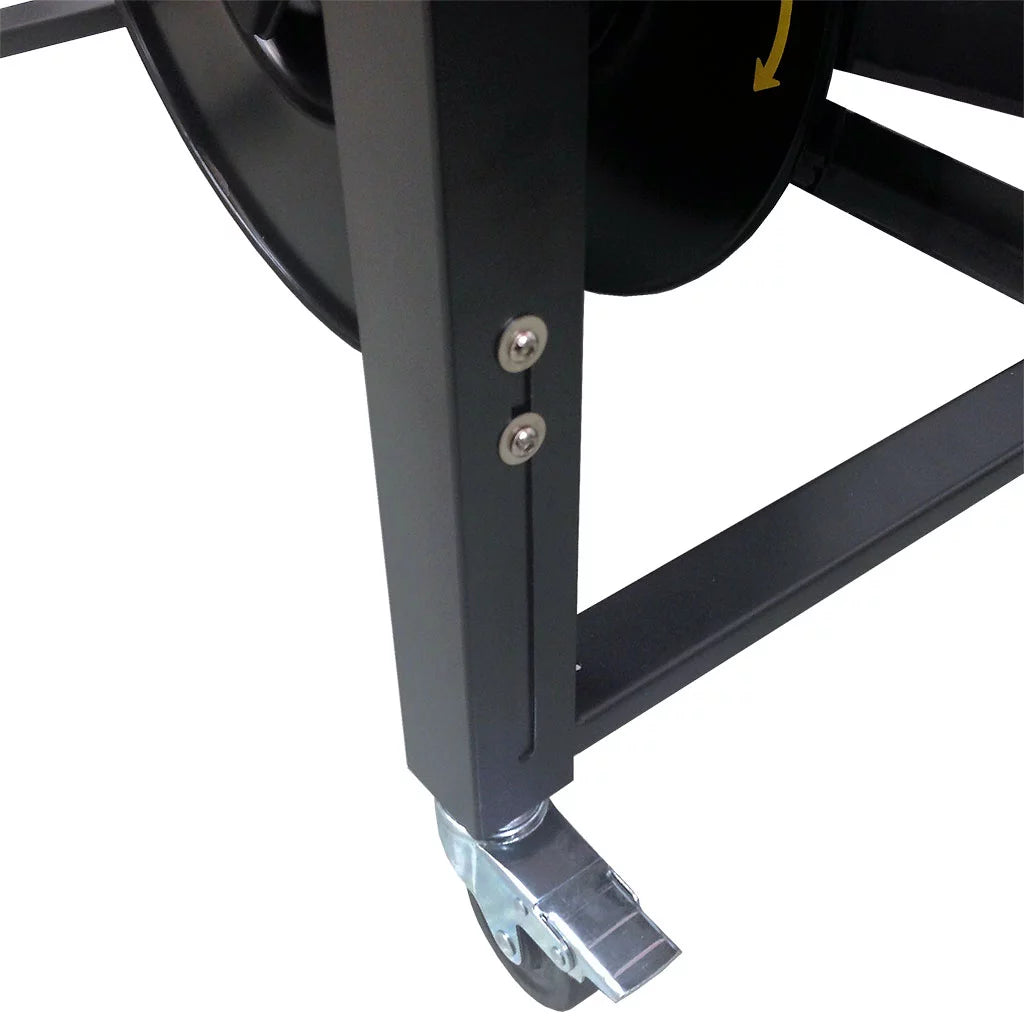

- Adjustable leg height

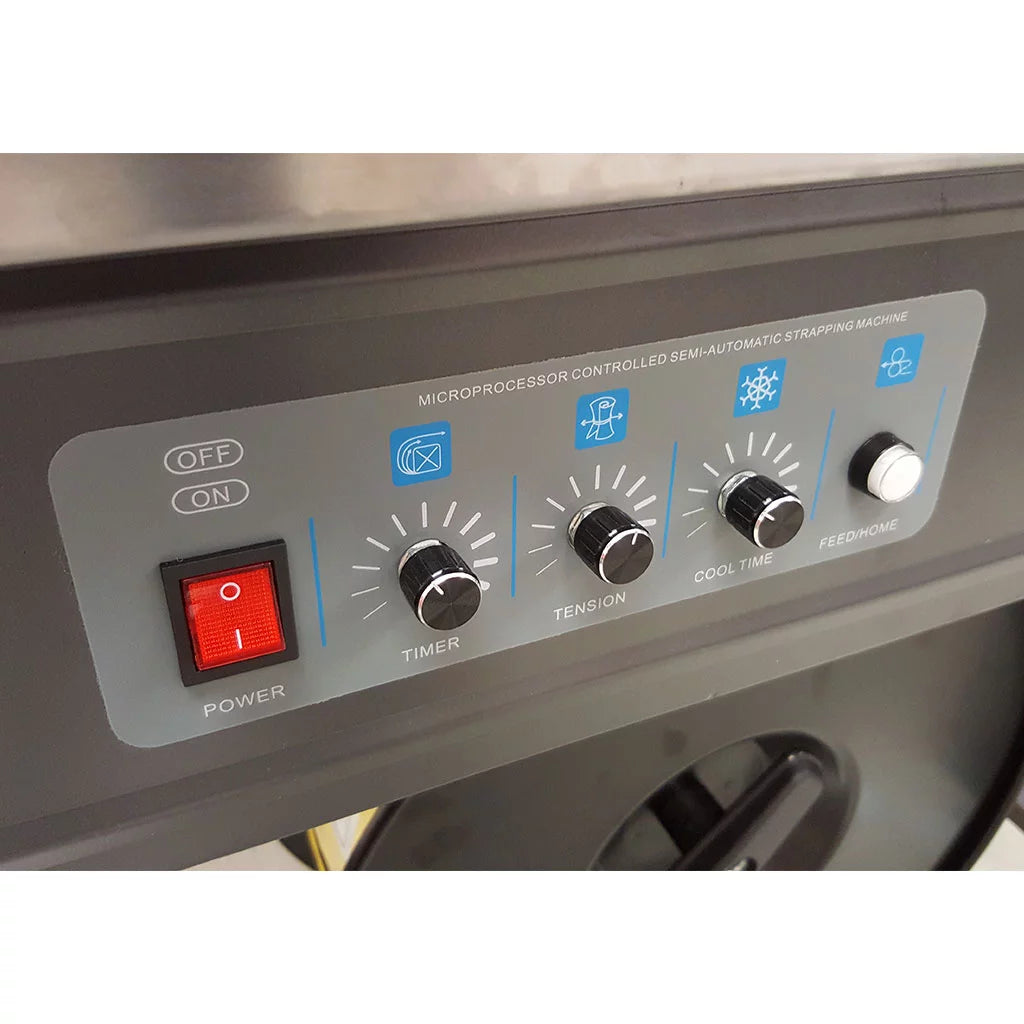

- Electronic tension control
- Stainless steel table top

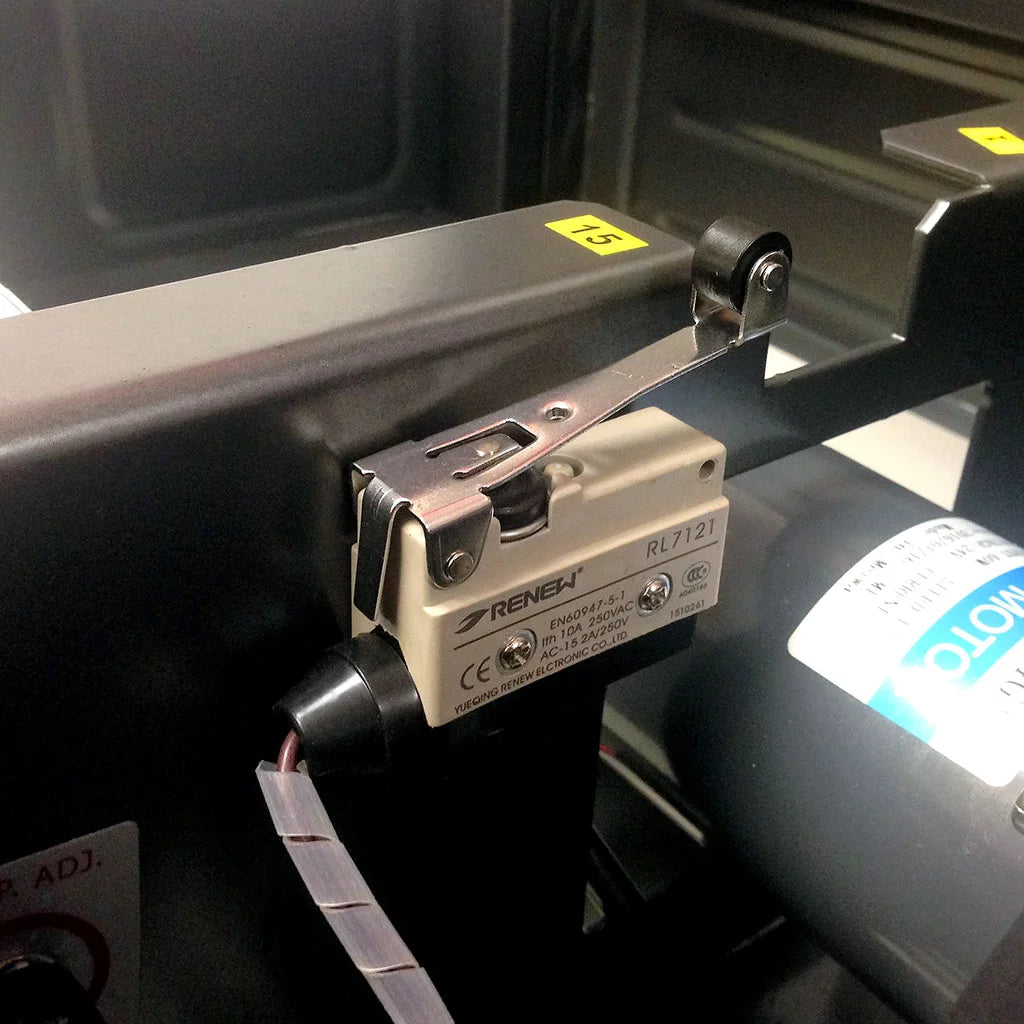

- Safety Switch
- Eco-friendly
Description
The Eagle SP11 offers eco-friendly operation through use of two direct-drive 24VDC motors. Therefore eliminates the need for a complex belt and pulley system and provides for nearly silent operation. Also, strap tension is controlled electrically, which eliminates the need for a manual spring-based hand crank system.
Just like the Eagle 100, the Eagle SP11 is height adjustable. It includes a stainless steel table top and has a safety switch that cuts power while the lid is open to protect the operator.
Additional information
Power |
110VAC, 50/60Hz, 0.25kW |
---|---|
Working speed |
3 seconds per strap |
Strapping force |
0-50kg, 0-110lbs |
Strap size |
Width (5-15mm) ±1mm, Thickness (0.5-0.8mm) ±0.1mm, Width (0.20-0.6in) ±0.04, Thickness (0.02-0.03in) ±0.004in |
Outside dimension |
L750mm x W550mm x H750mm, L29.5in x W21.7 x H29.5in |
Worktable height |
750mm, 29.5in |
Machine weight |
162.8lbs, 74kg |
Enviroment |
Humidity ≤90%, Temperature 0-40ºC, 32-104ºF |
Bottom adhesive |
Hot melt: face ≥90%, width ≥20%, deviation of position ≤2mm |
