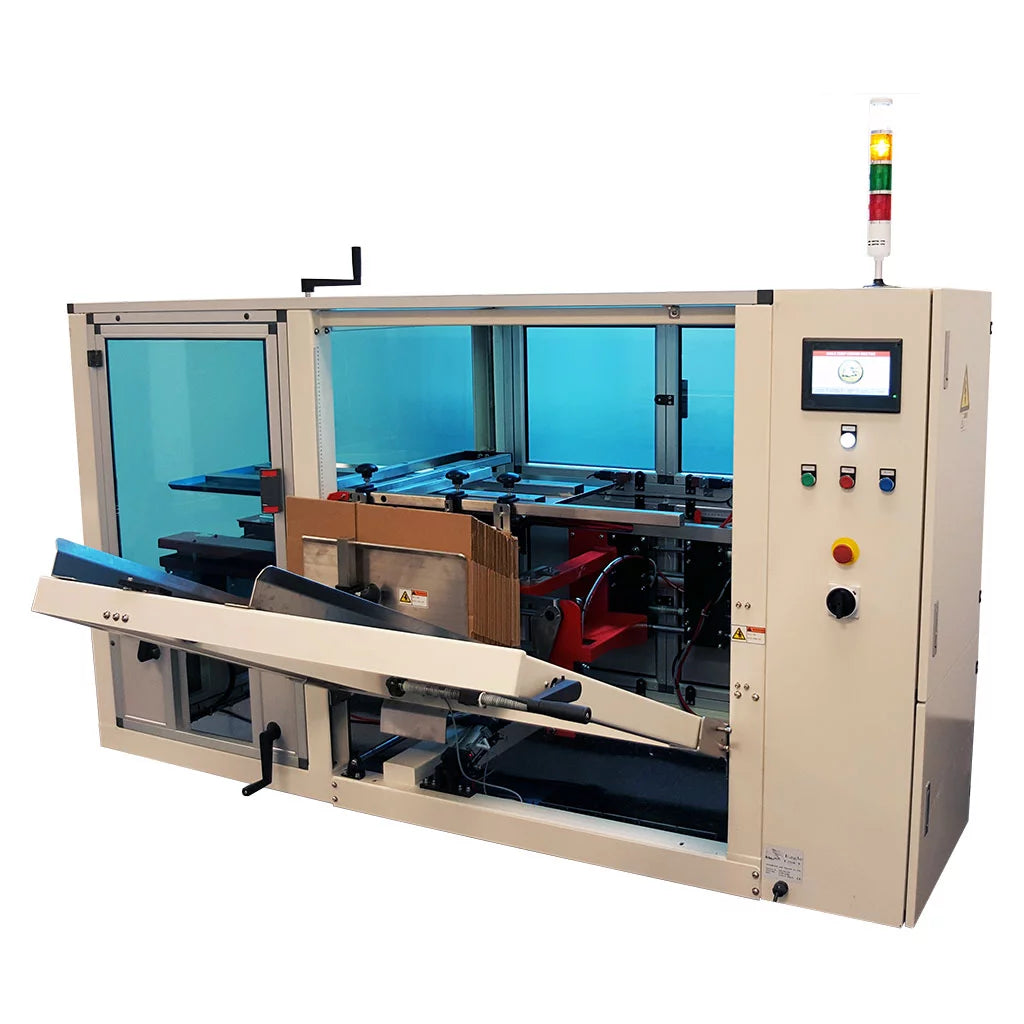

From start to finish this carton erector constructs and seals the bottom of each carton in only 3 seconds! Rather than stopping your production, the vertical storage system allows the operator to load cartons. Also, the Eagle T20CF is suitable for various carton sizes. For example you can manually adjust carton sizes in under 2 minutes. In summary, these features provide for increased productivity.
Features:

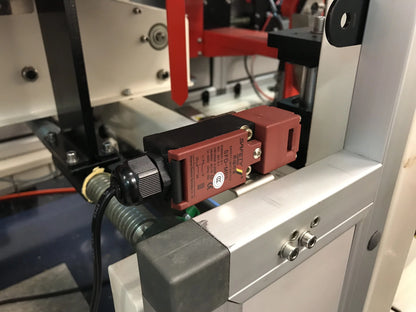

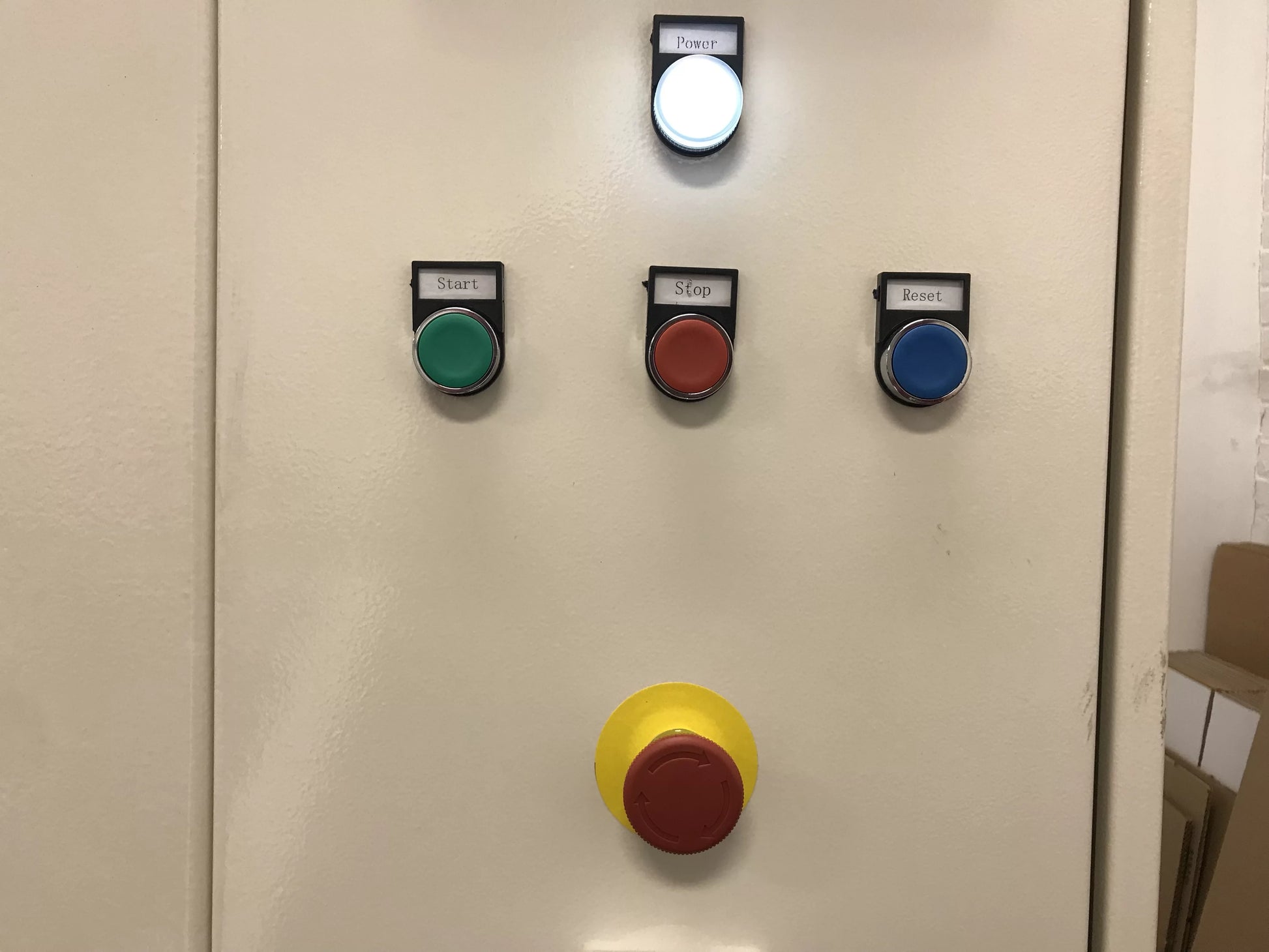

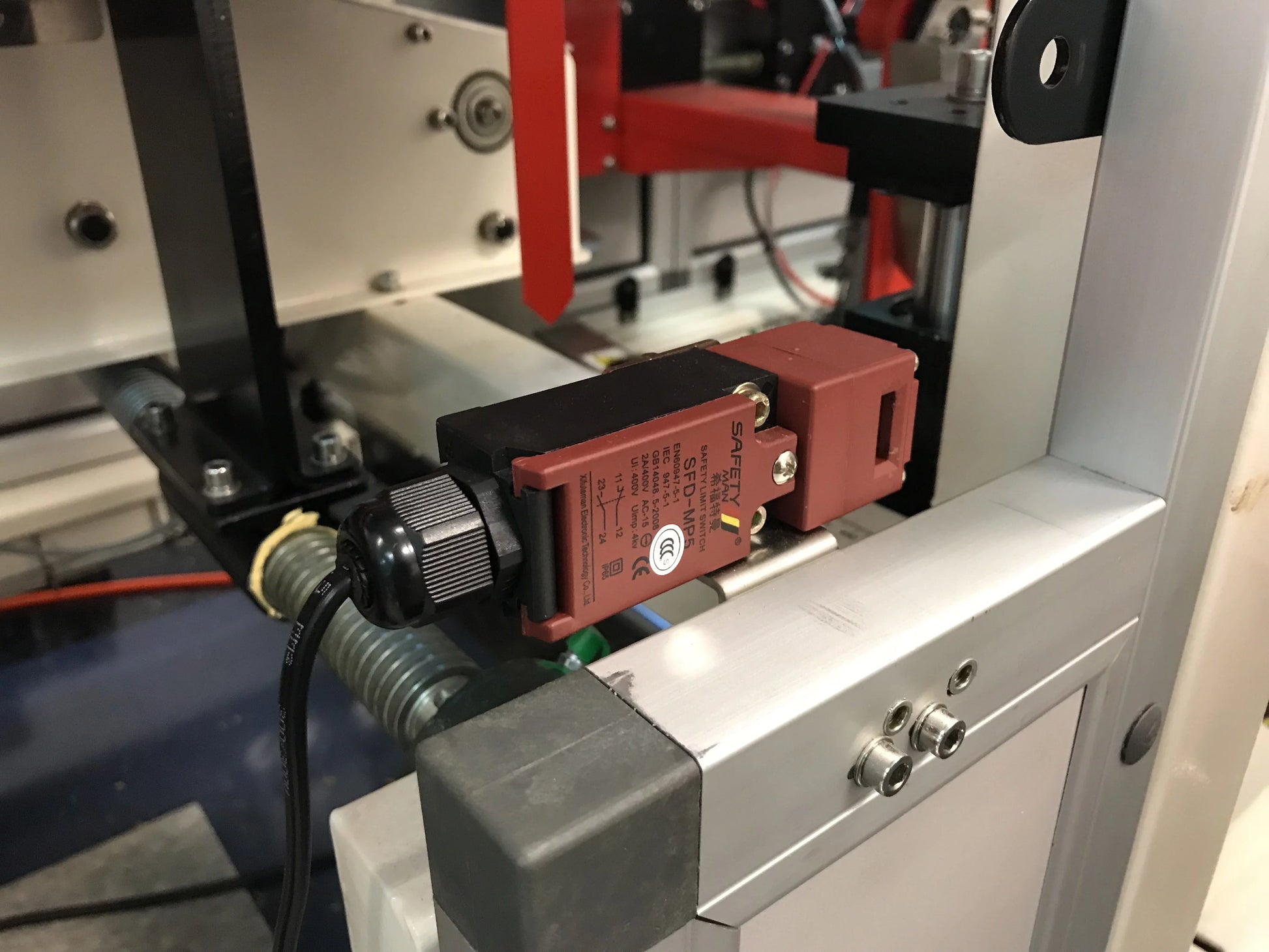

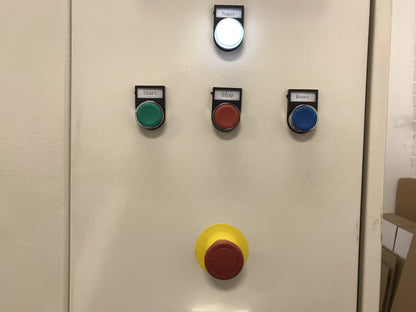

5-Point industry-leading emergency stop and safety system
Fully enclosed machine with safety access doors
Tape head adjustable for 2″ or 3″ tape using the same head

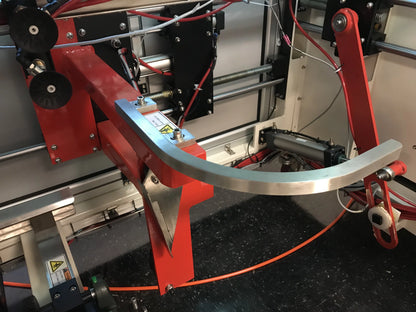

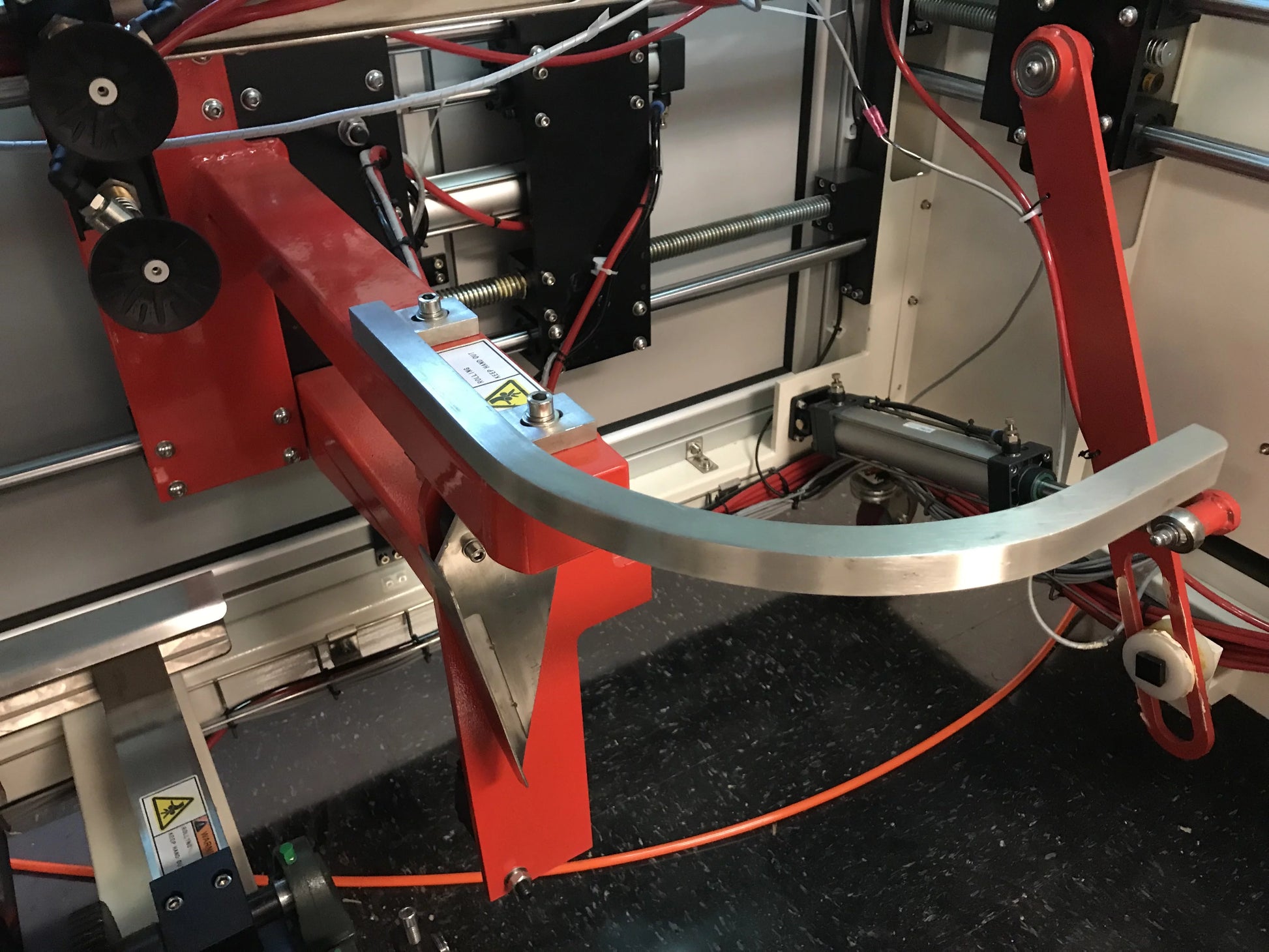

Fully automatic case folding and sealing

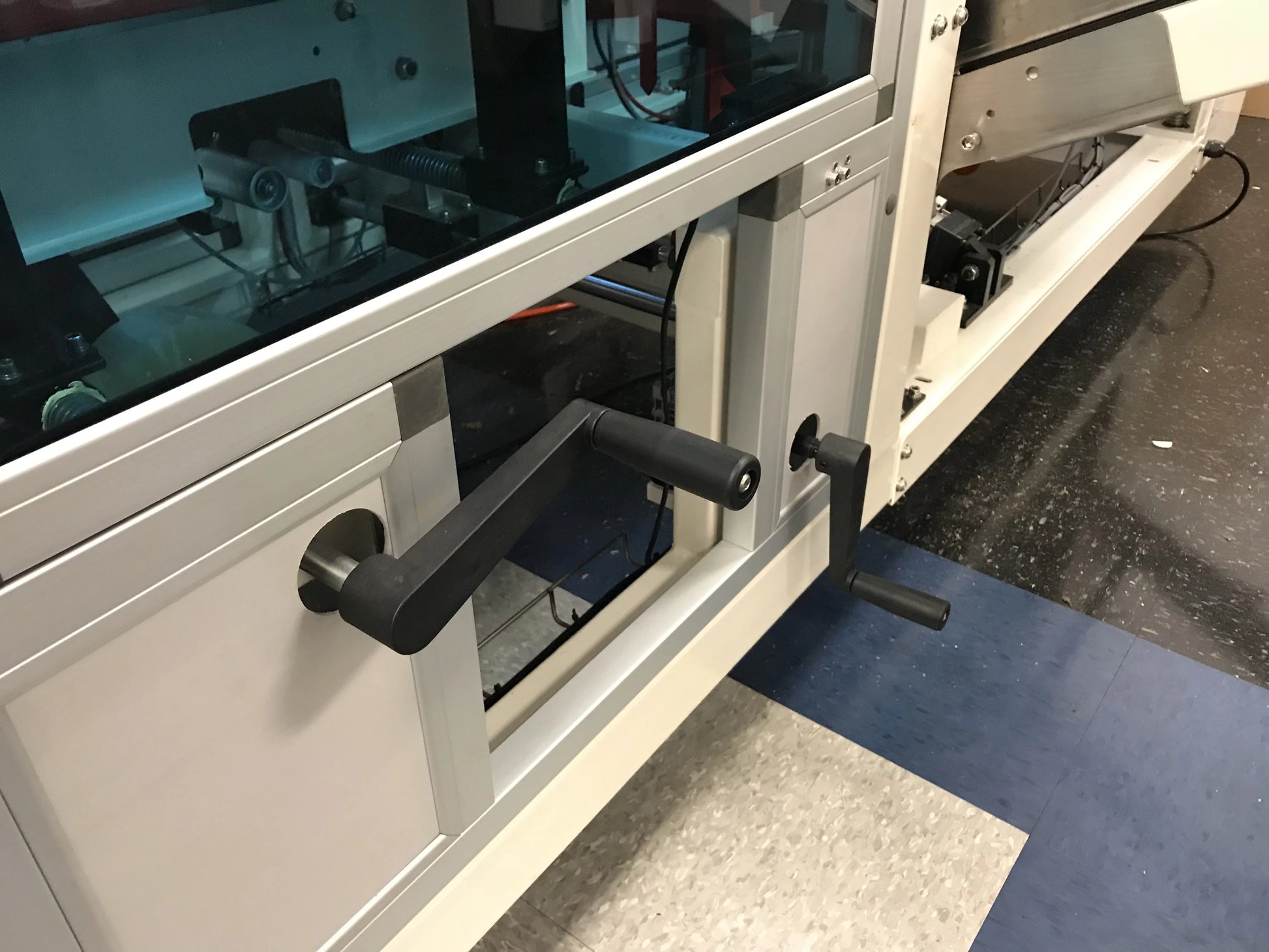

Fast and simple case adjustment
Low case warning alarm
Broken tape warning alarm

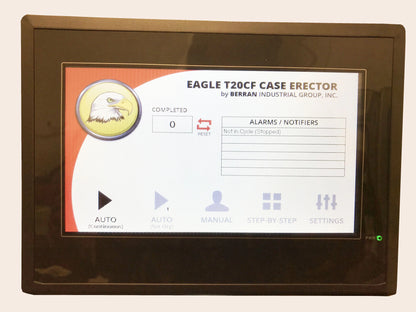

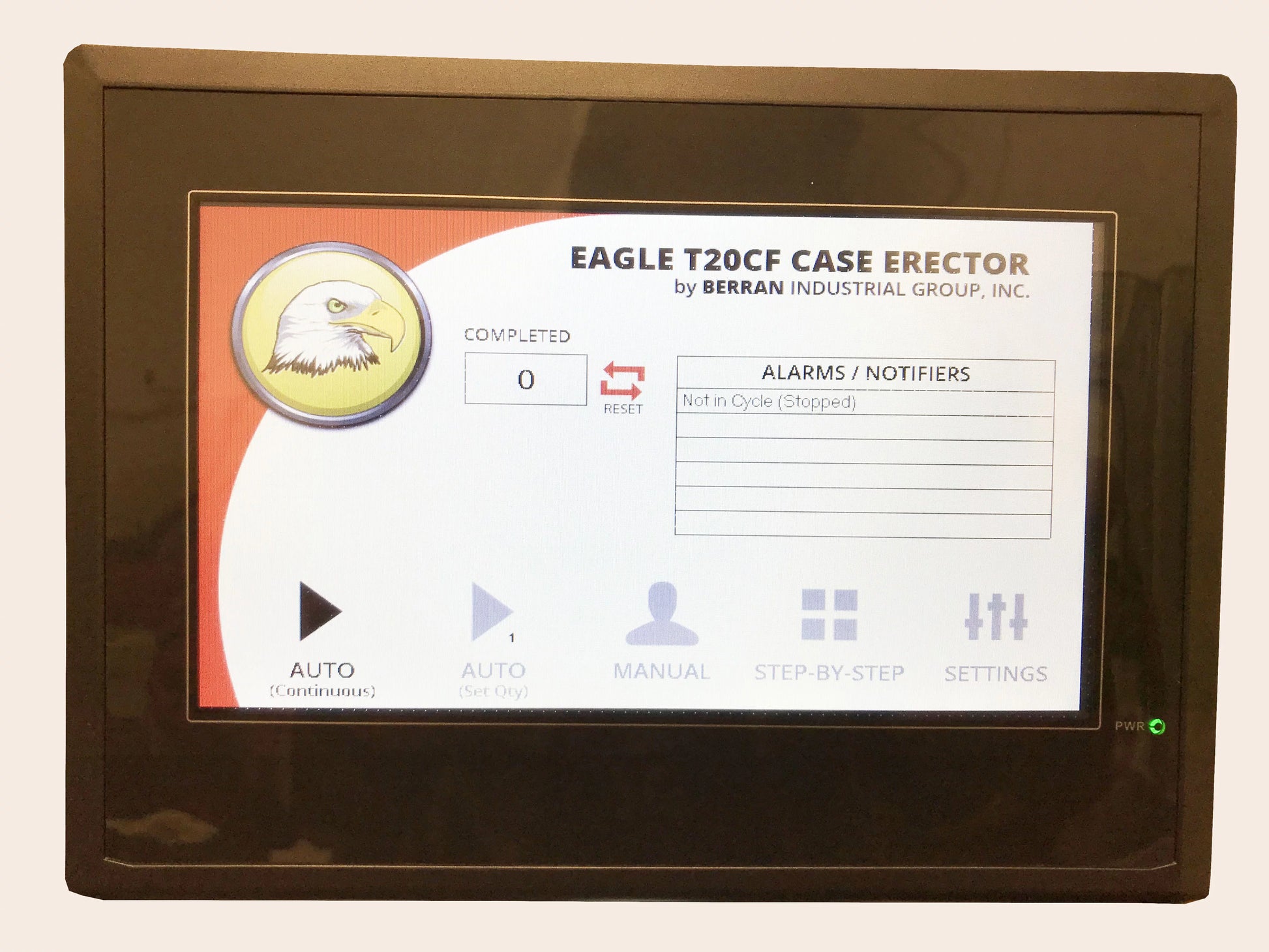

Easy to use 7″ color touch screen
Self-cleaning system
Up to 12 cases per minute
Additional information
Power
110VAC, 60Hz

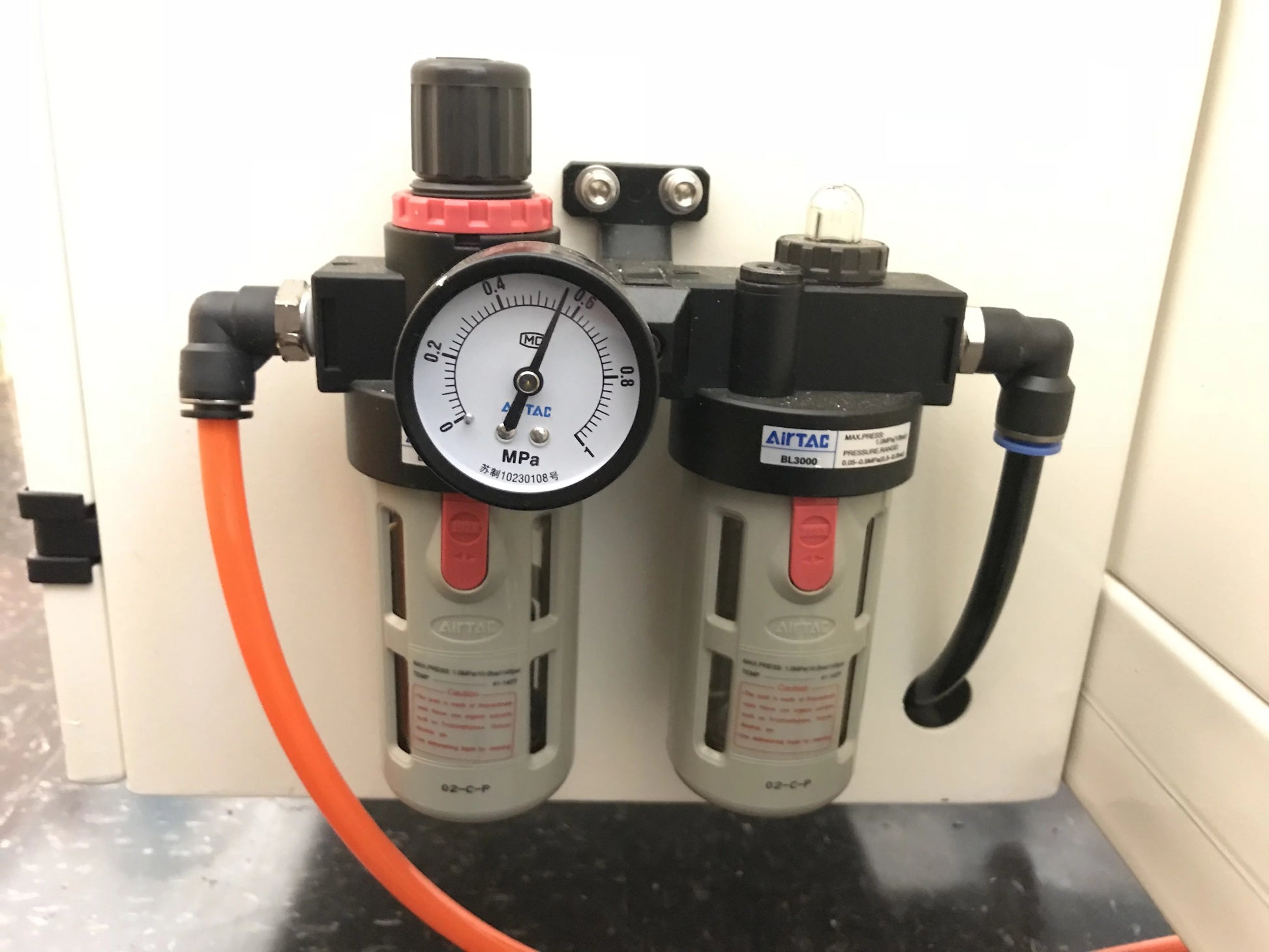

Air source
5 CFM @ 90PSI
Tape Width
2" or 3"
Working Speed
Up to 12 cases per minute
Case Size
Length: 11-20.5in, 279.4-520.7mm, Width: 7-11in, 177.8-279.4mm Base carton size must meet the following requirement: 24in, 609.6mm > W/2+H > 11in, 279.4mm
Machine Dimensions
L86.6" x W80.7" x H53", L2422mm x W1963mm x H1615mm
Machine Weight
881.8 lbs., 400kg
Working Environment
Humidity: ≤90%, Temperature Range: 32-104ºF, 0-40ºC
