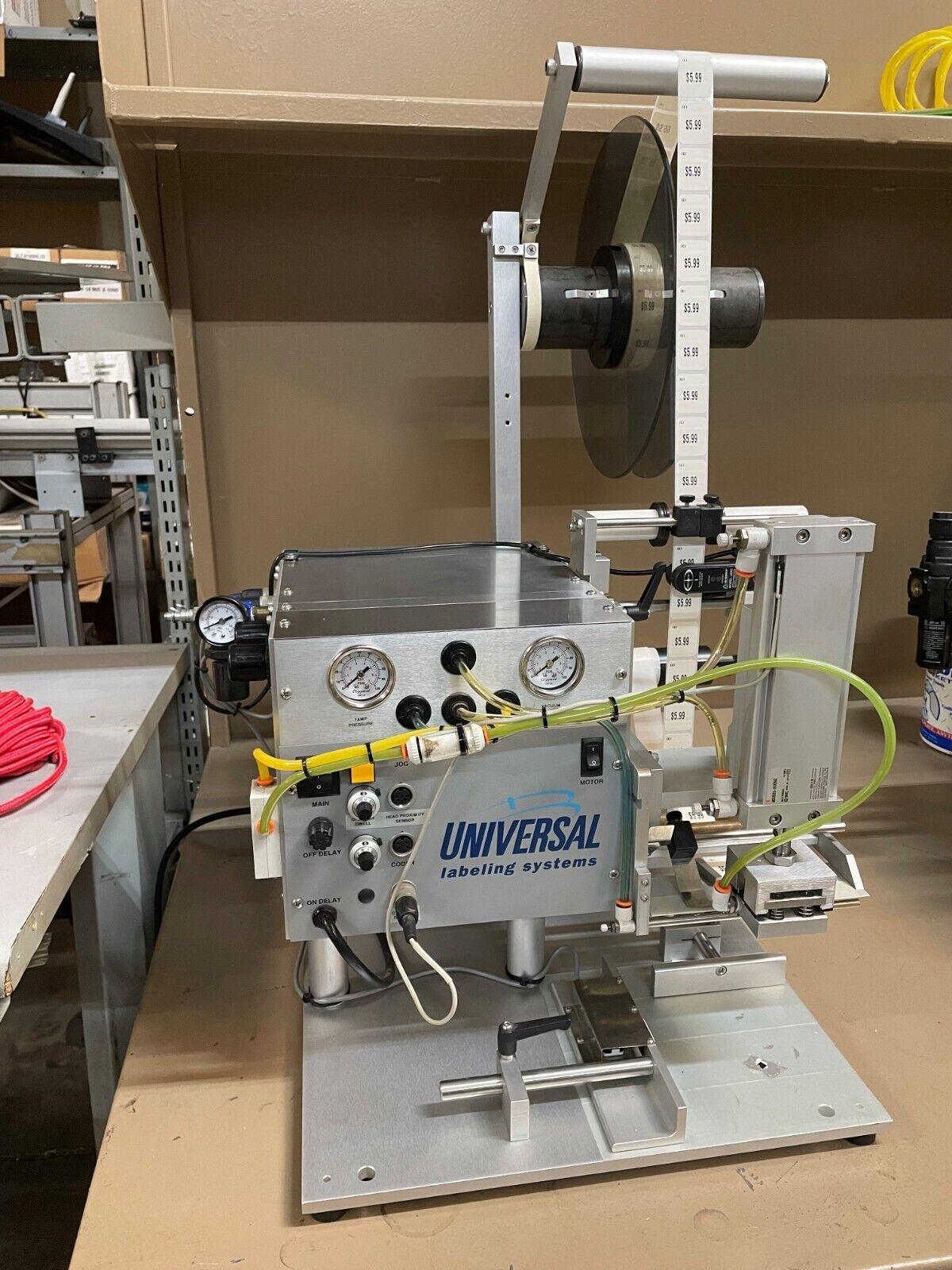

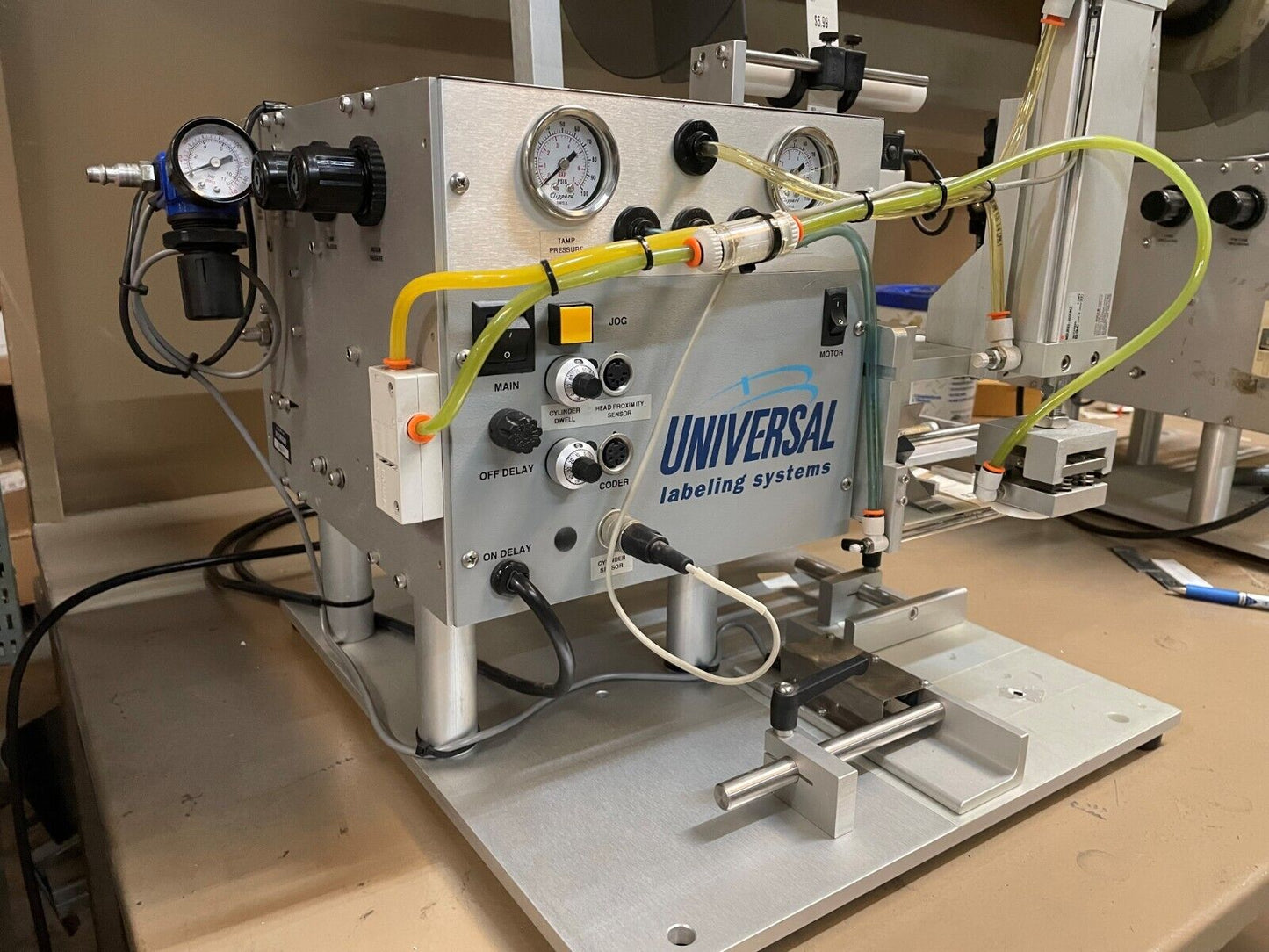

Used L-60 Table Top Tamp Semi-Automatic Label Applicating Machine
Used L-60 Table Top Tamp Semi-Automatic Label Applicating Machine
Regular price
$4,200.00 USD
Regular price
$205.00 USD
Sale price
$4,200.00 USD
Unit price
/
per
Couldn't load pickup availability
L-60 Label Applicator. Left Hand Model.
Serial #: L60A-1101L-06A1-TT106-A148-1749.
Input: 110-AC Single Phase
50/60 Hz
3A
|
FEATURES
- Stepper Driven
- Programmable Logic Controller (PLC)
- Label dispense speed up to 600 ipm
- Photoelectric label sensor
- Tamp dwell control
- 6.5” wide web capacity
- Product detection delay (ON delay)
- Label stop delay (OFF delay)
- 12” roll capacity 3” core
- Includes one “quick change” Tamp head
- Foot switch activation
L60 Semi-Automatic Tamp System • Stepper Driven • Programmable Logic Controller (PLC) • Touch Screen Operator Interface • Label dispense speed up to 600 ipm (15240 mm) • Photoelectric label sensor • Tamp dwell control • 6.5” wide web capacity (165.1 mm) • Product detection delay (ON delay) • Label stop delay (OFF delay) • 12” (304.8 mm) diameter label supply, 3” (76.2 mm) core • Includes one “quick change” Tamp head • Foot switch activation
Please see the below link for the product brochure:
ULS_Brochure_download_2022 (1).pdf (cdn-website.com)
SPECIFICATIONS
- Dimensions: 19″W x
21″D x 24.75″H. - Web width: up to 6.5″.
- Label roll capacity: up
to 12″ - Air: 40PSI Tamp/80PSI Blow-on, electric: 120 VAC
