L-729 Automatic L-Bar Sealing Machine
L-729 Automatic L-Bar Sealing Machine
Regular price
$31,700.00 USD
Regular price
Sale price
$31,700.00 USD
Unit price
/
per
Couldn't load pickup availability

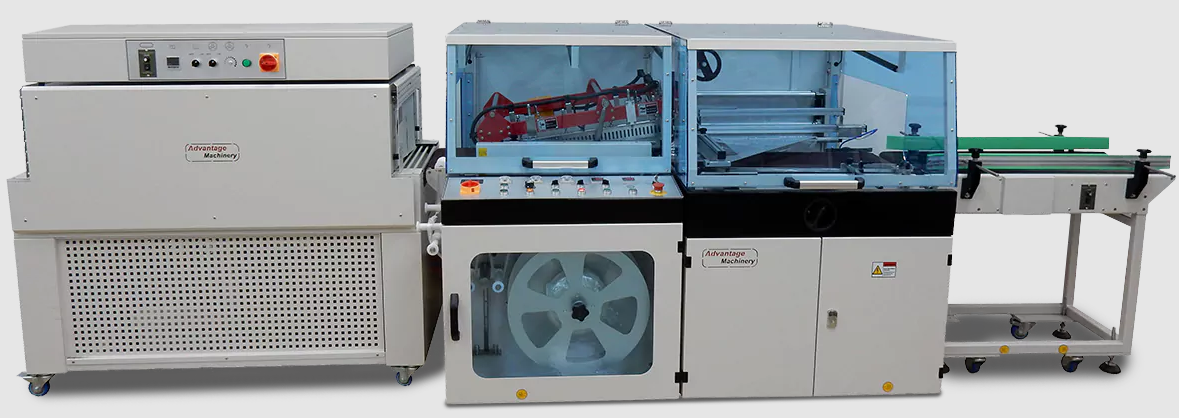

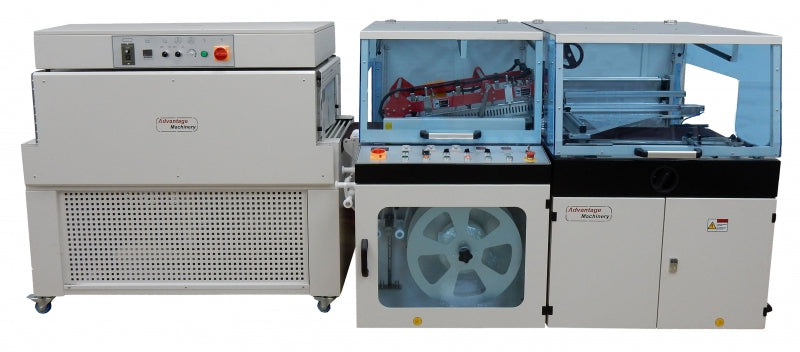

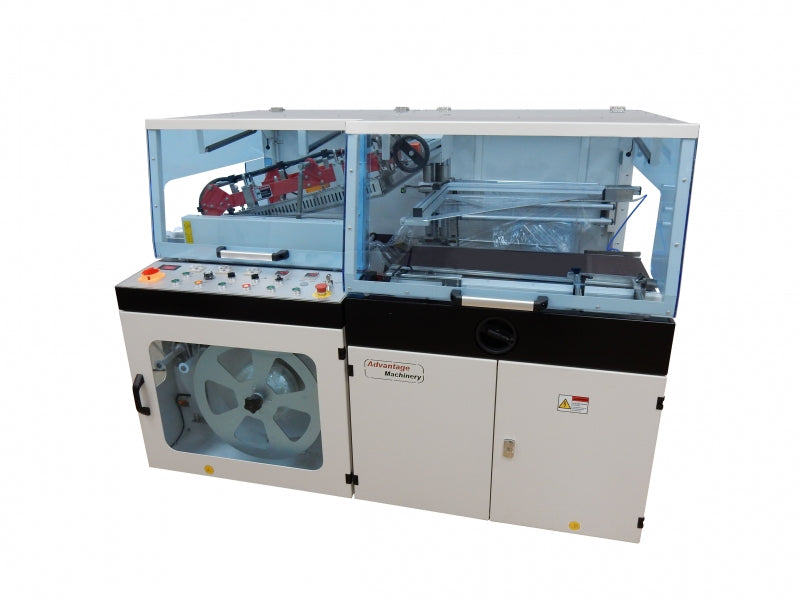

The L-729 Automatic L-Bar Sealer is an economic, durable, and easy to use L-Bar sealer. The machine is controlled via a PLC which allows the operator to set the different times for the sealing operating, the temperature of the blades, and also the length of film that is to be used. The machine has a variable conveyor speed controller which makes the machine ideal for both, manual and automatic feeding.
Additional machine features are:
- Quick change over between productions and sizes.
- Horizontal and vertical sensors for the packaging of different products.
- Solid knife sealing blades make a consistent seal and are long-lasting.
- Automatic waste removal system.
- Can be used with existing tunnels or you can choose from our wide selection.
- Includes an adjustable jaw height and seal centering.
- Can come with optional features such as:
- Closing conveyor
- Stainless steel construction
| Model | L-729 |
| Product Size LxWxH (in) | (2" - 22") x (2 3/8" - 15 5/8") x (1/2" - 6 1/4") |
| Sealing Blade Size LxW (in) | 24.80" x 20.47" |
| Max. Speed (pieces /min.) | 25 - 30 |
| Max. Film Width (in) | 26" |
| Conveyor Speed (ft/min) | 0 - 85 |
| Power (Volt. / Ph. / Amps / Kw) | 220 / 1 / 15 / 3.5 |
| Air Pressure / Consumption (PSI / CFM) | 60 / 2.5 |
| Machine Dimensions LxWxH (in) | 74" x 53" x 51" |
