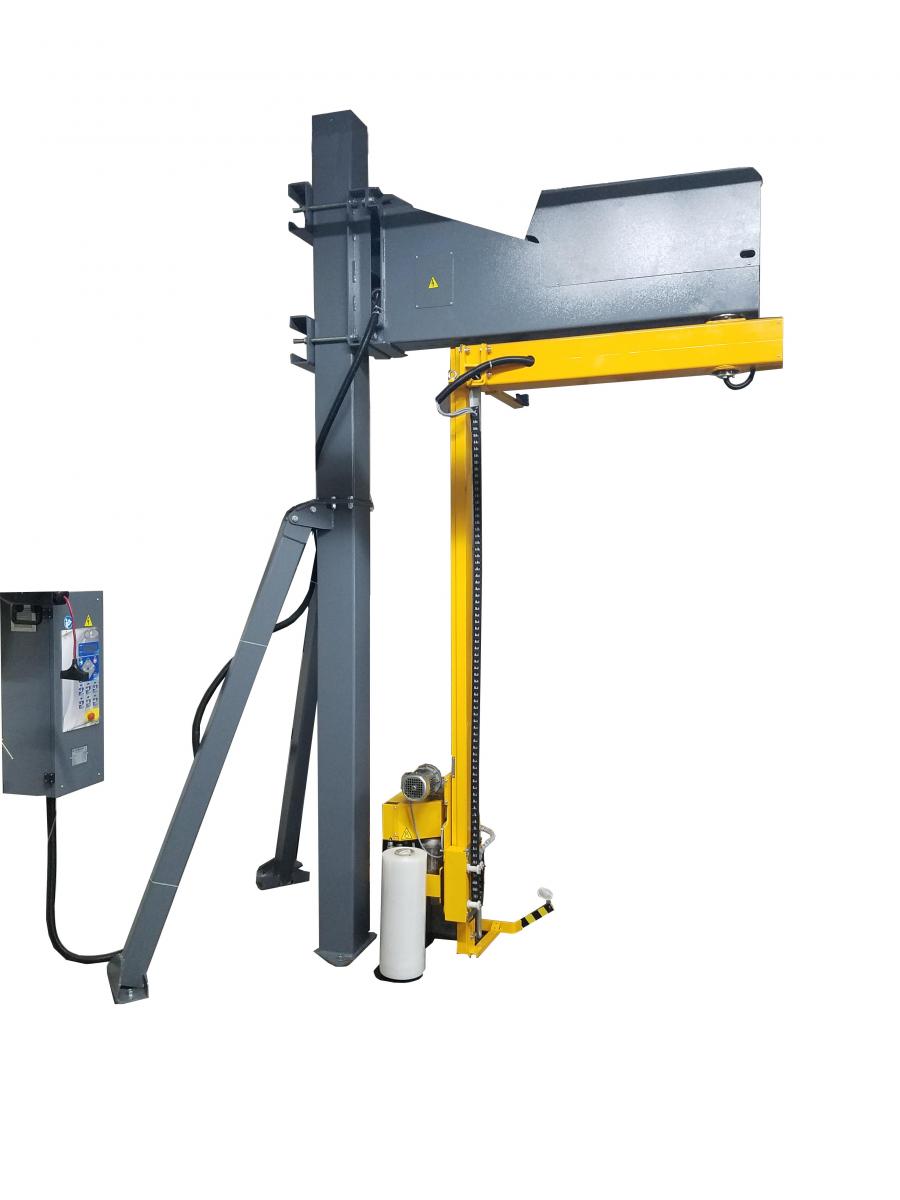

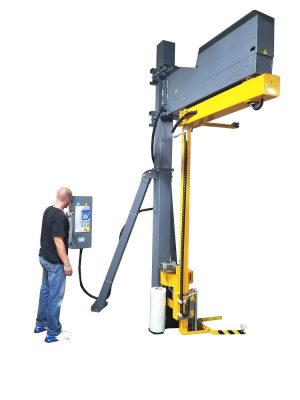

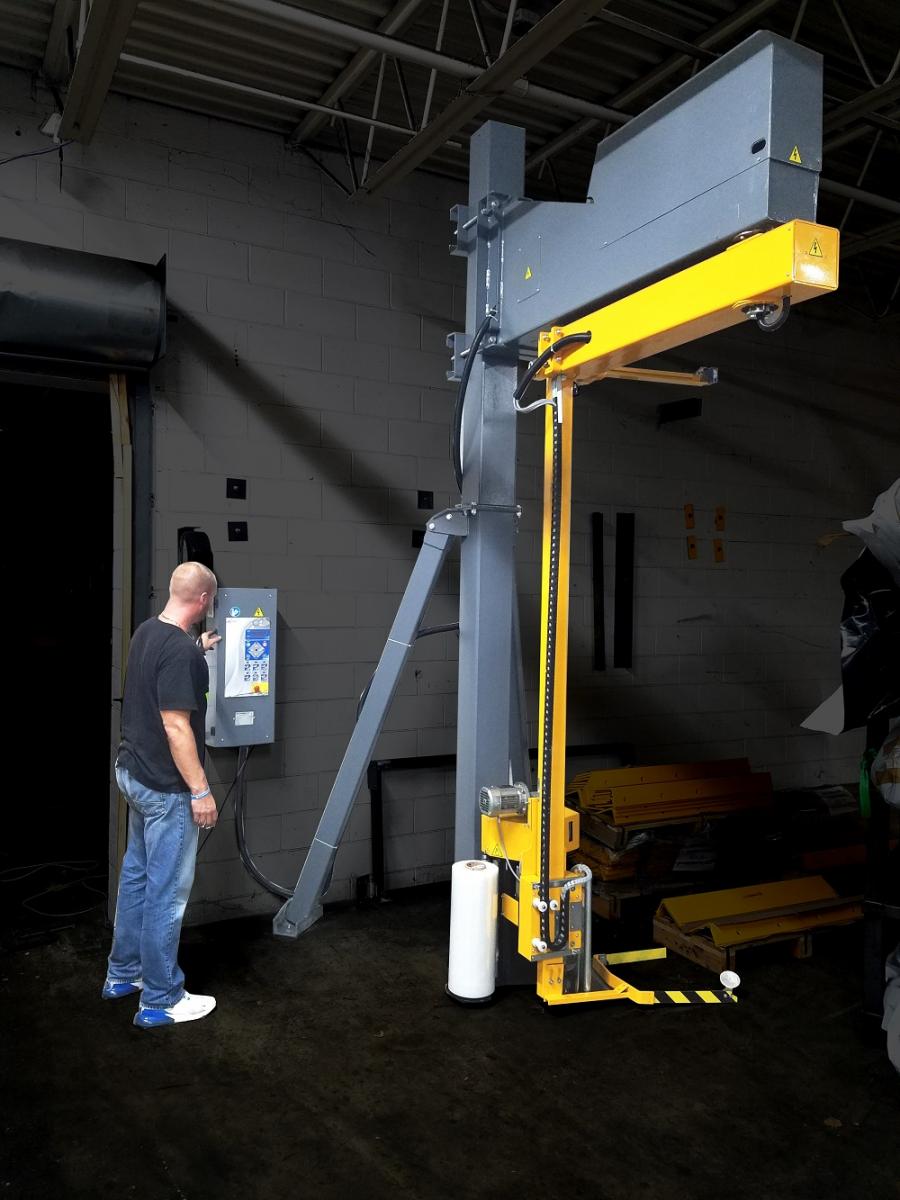

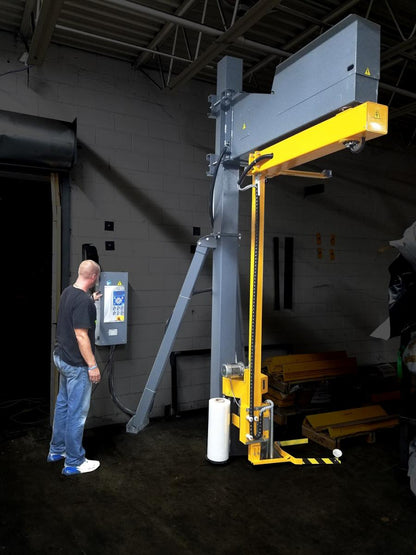

Rotary Arm Stretch Wrap Machine Model 2200

The Handle It® Model 2200 Rotary Arm Pallet wrapper is ideal for very heavy or unstable pallets. It comes with all of the features you want in a stretch wrapping machine, fully adjustable wrap cycles, 250% film pre-stretch efficiency, and the same operating platform as our most popular turntable style machines.

Quickly wrap extra heavy or unsteady pallet loads

250% film pre-stretch carriage

Standard 110v plug

Overview

FEATURES & BENEFITS

• Max load diagonal 82″
• Fixed pedestal mount
• 110V plug-in
• Photo eye auto pallet height sensor
• Power prestretch carriage (up to 250%)
• Safety stop loop at base
• Stop at 0 position
• 6 working cycles
• 32 end user program storage
• Wrapped pallet counter
• Rack & pinion carriage drive track
• Overall dimensions: 125” length x 113” width x 140” height

MAIN OPTIONS

• Adjustable power prestretch carriage (600%)
• Auto-cutoff system
• Roping system
• 118” max wrap height
• Remote control
• Photo cell for dark or reflective loads
• Extended arm for 114″ load diagonal

How Does a Rotating Arm Stretch Wrap Machine Work?

Rotating arm stretch wrappers can wrap a high volume of loads that other machines cannot. The lack of a turntable allows you to place non-standard size and weight pallets on the floor in the wrapping zone via a forklift or pallet jack.

Once the pallet is in place, the operator then pushes a button on the control panel, and the machine immediately begins wrapping the pallet. The rotating arm then follows a preset wrap program to ensure the stability and security of the load.

Depending on the model, the machine can wrap anywhere from 25 per hour up to 300 per day.

Benefits of Rotary Arm Stretch Wrap Machines

A rotary arm stretch wrap machine allows the pallet to remain stationary during the wrap cycle. This offers several advantages:

Extremely Light Loads—On a standard turntable pallet wrapper, very light loads can fall off during the wrapping process. A rotary arm machine allows the pallet to remain securely in place, thereby preventing the load from spilling.

Extremely Heavy Loads—Turntable pallet wrappers have a max load weight. Rotary arm stretch wrappers do not have a turntable and, as such, no weight limit.

Washing Issues—Some shipping areas require regular washdowns. You can raise the rotary arm of the wrapper to avoid it getting wet during the cleaning process.

Unstable Loads—You run the risk of spilling or damaging an unbalanced load if you put it on a turntable wrapper. Rotary stretch wrap machines do not have turntables and can quickly wrap non-standard size pallet loads.

Tall Loads—Taller loads run a risk of getting damaged when using a turntable stretch wrapper. A rotary arm stretch wrapper allows for the wrapping of much higher pallets.

Specifications

• Wrap Height – 94”, 118” with extended mast
• Machine Dimensions – 125” L x 113” w x 140” h
• Max Load Diagonal – 82”
• Weight Capacity – Unlimited
• Pre-Stretch – 250% Powered
• Power Supply – 110V, 10 Amp
• Warranty – 3 years
• Machine Weight – 1,500lbs
• Arm Rotation Speed – 12 RPM
• Electronic printed circuit board for the management of the cycle
• Frequency controller for rotation speed adjustment (from 3 to 12 RpM)

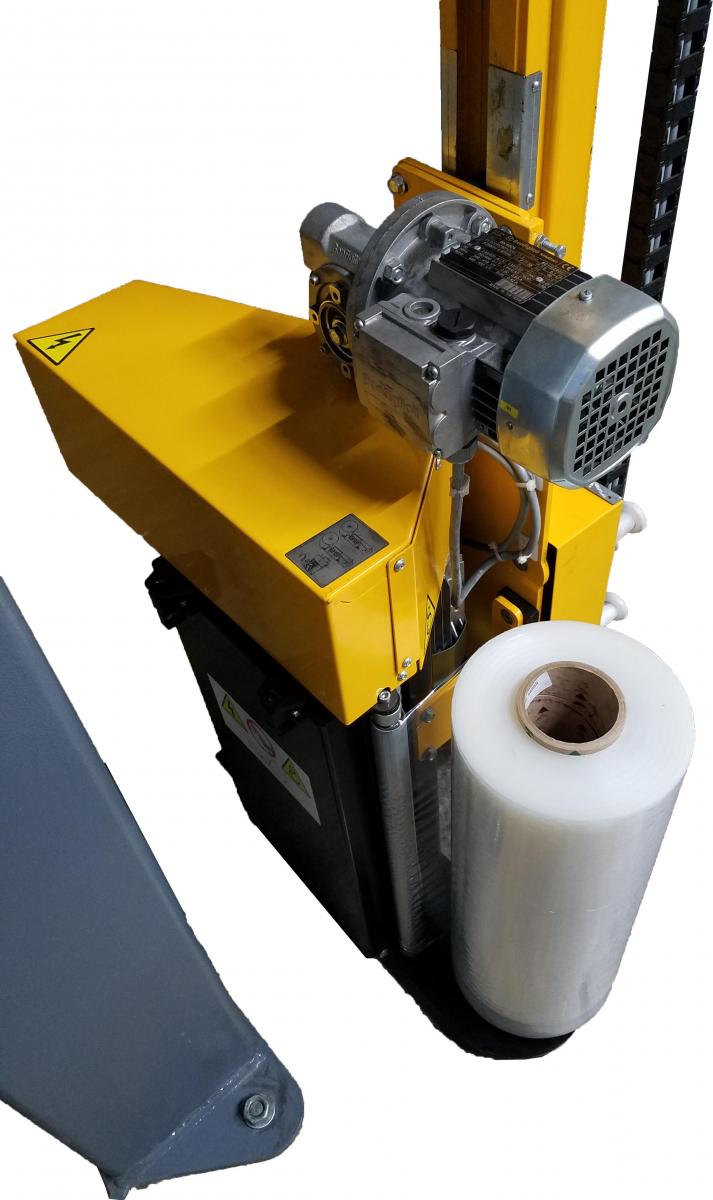

• 250% Powered Pre-stretch Film Carriage
• Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)
• Maximum wrapping height: 94”, “118 with extended mast
• Maximum loading weight: Unlimited
• Electromagnetic brake for film stretching
• Photocell for pallet height detection
• Safety stop loop at the base of the carriage
• Stop at 0 position
• Power board IP54
• 3 access keys (including lock mode)

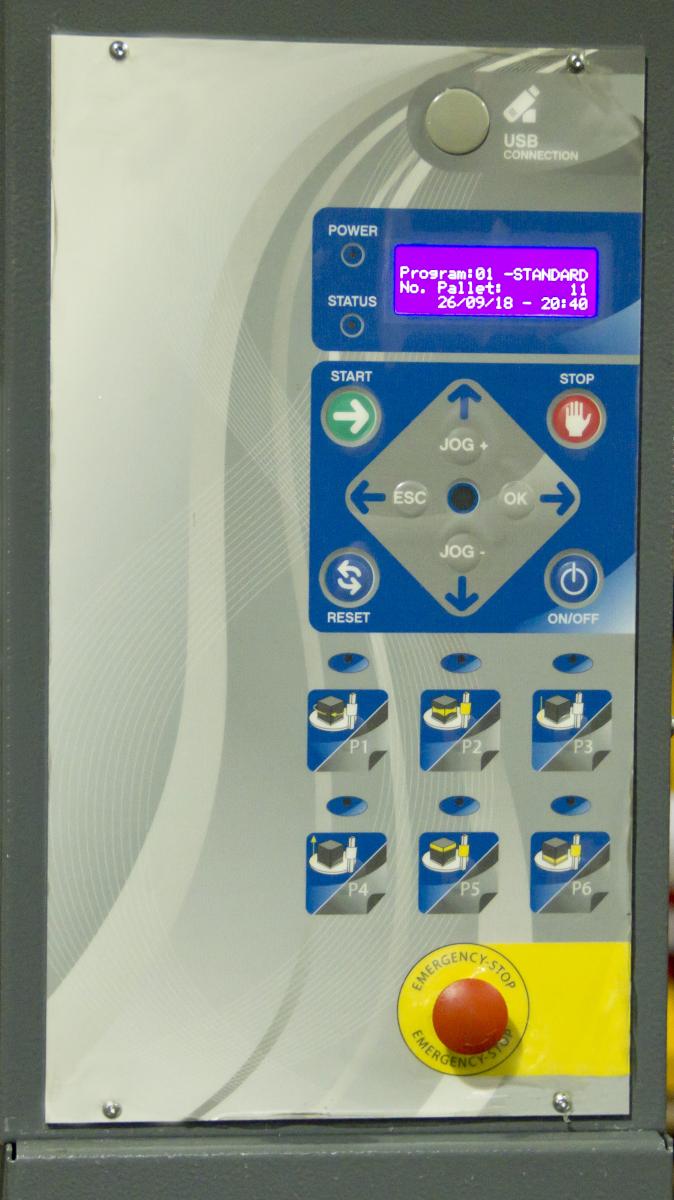

• Adjustable parameters by the control panel: cycle selection, bottom turns, top turns,rotation speed, carriage speed going up, carriage speed going down, film tension.
• 6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack
• 32 wrap programs can be saved by the customer
• 3 cycle types: semimanual, semiautomatic, and fixed height
• Acoustic warning at the cycle beginning and stop
• Wrapped Pallet counter
• Autodiagnostic
• Powder coating
• Braked arm at the end of the cycle

Quality

• Designed and manufactured in Europe
• Final assembly, testing, and programming in Milwaukee, Wi
• ISO 9000 certification
• CE compliant
• Utilize high-quality components
• We test and pre-program every machine before shipment
